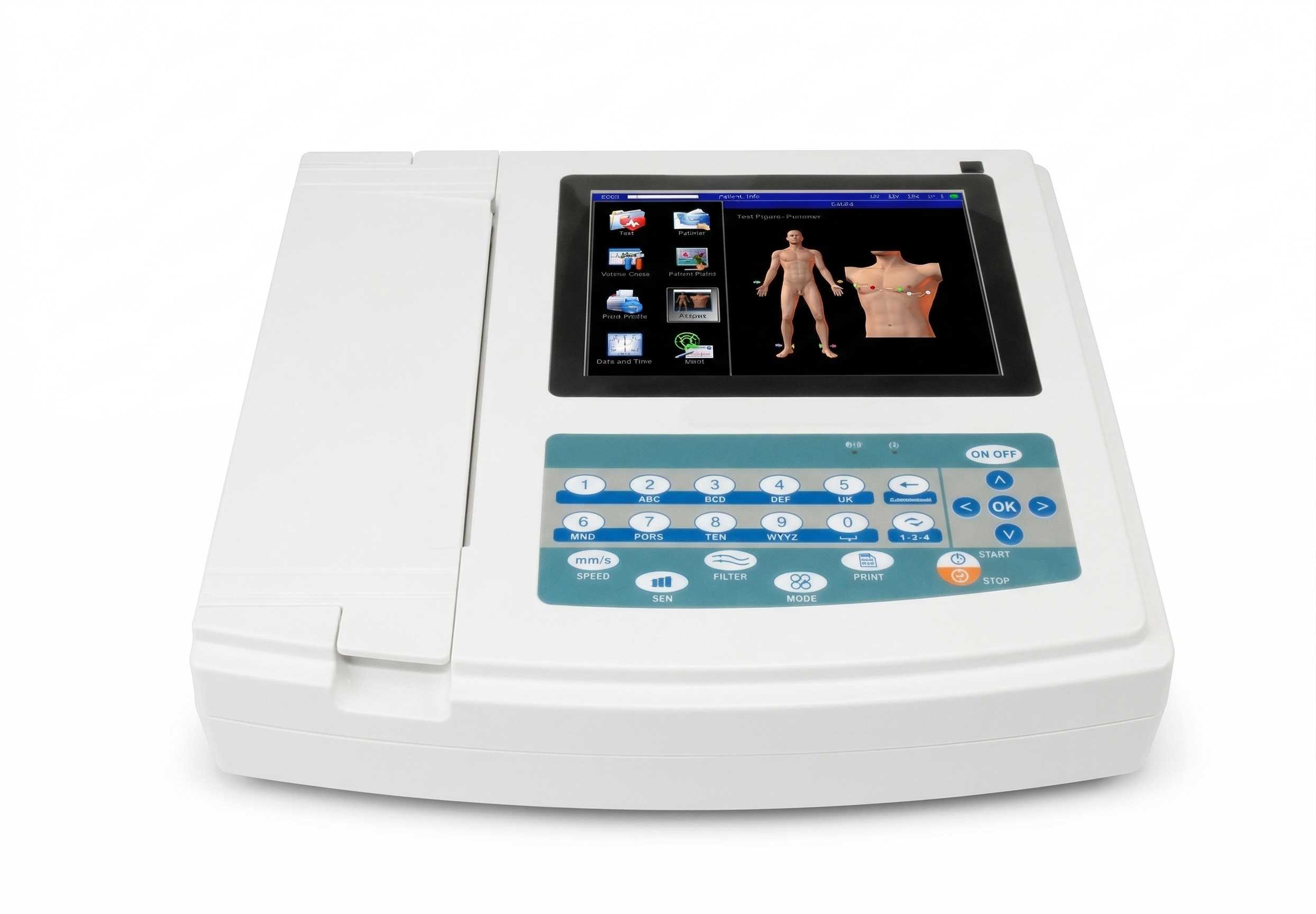

The Contec ECG1200G Electrocardiograph is a high-performance 12-channel ECG system designed for accurate cardiac monitoring and diagnosis in hospitals, clinics, and diagnostic centers.
It supports simultaneous 12-lead ECG acquisition with high sampling accuracy, ensuring precise waveform capture. Equipped with a touchscreen interface and intuitive controls, it allows seamless operation and quick access to patient data.
The device features automatic measurement and diagnostic analysis of ECG parameters, reducing clinician workload while improving efficiency. With multiple printing formats, built-in memory, and long battery life, the ECG1200G is ideal for both in-clinic and mobile use.
⚙️ TECHNICAL SPECIFICATIONS
- Brand: Contec
- Model: ECG1200G
- Type: 12-Channel Electrocardiograph
- Lead System: 12-lead simultaneous acquisition
- Sampling Accuracy: 24-bit
- Display: Touchscreen + keypad
- Printing: Thermal printer (multiple formats)
- Paper Speed: 5 / 6.25 / 10 / 12.5 / 25 / 50 mm/s
- Modes: Auto / Manual / Rhythm modes
- Memory: Built-in large storage capacity
- Battery: Up to 10 hours standby
- Continuous Printing: >3 hours
- Filters: Power frequency, baseline, EMG
- Interface: Multi-language support
📦 KEY FEATURES
✔ Simultaneous 12-lead ECG acquisition
✔ Touchscreen + button operation
✔ Auto analysis & diagnostic interpretation
✔ Multiple print formats and modes
✔ High-resolution ECG waveform display
✔ Long battery backup (portable use)
✔ Built-in case database management
✔ Multi-language interface
