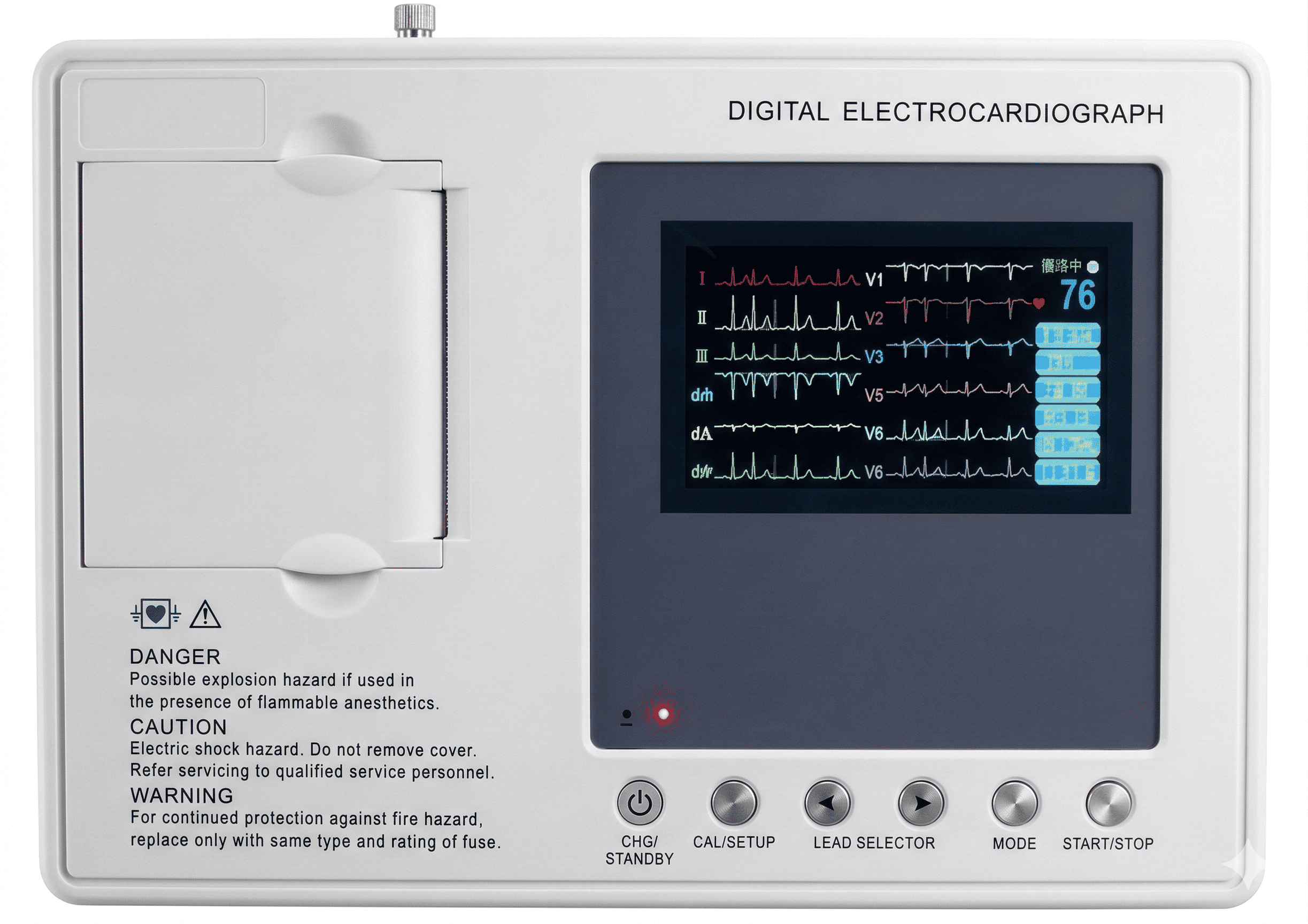

The 3-Channel ECG with Interpretation is an advanced digital electrocardiograph designed for efficient cardiac diagnosis and patient monitoring. Equipped with a 4.3-inch color display, the device provides clear waveform visualization and allows healthcare professionals to monitor ECG signals in real time.

This ECG machine supports simultaneous 12-lead ECG acquisition, enabling comprehensive cardiac analysis and accurate interpretation. The integrated thermal printer ensures quick printing of ECG reports using standard roll-type thermal paper.

With a built-in rechargeable lithium-ion battery, the device offers reliable portability and uninterrupted operation during clinical use. Its internal memory allows storage of up to 200 patient records, with options for data transfer through USB or RS232 interfaces and external SD card support.

The system is ideal for use in hospitals, clinics, emergency rooms, and diagnostic centers, providing accurate ECG measurements with convenient data management and connectivity.

Technical Specifications

Display

• 4.3-inch color LCD

• Resolution: 480 × 272 pixels

ECG Acquisition

• 3-channel ECG recording

• Simultaneous 12-lead ECG acquisition and display

Printer

• Built-in thermal printer

• Paper type: 80 mm × 20 m roll thermal paper

Memory

• Stores up to 200 patient reports

• Supports external SD card

Battery

• Built-in 1800 mAh rechargeable Li-ion battery

• Up to 2 hours continuous operation

Power Supply

• AC power input: 110–240 V

• Frequency: 50/60 Hz

Connectivity

• USB interface

• RS232 interface



Key Features

• Simultaneous 12-lead ECG acquisition

• High-resolution 4.3″ color display

• Built-in thermal printer

• Internal memory for 200 patient reports

• Rechargeable Li-ion battery

• USB & RS232 connectivity

• Compact and portable design
